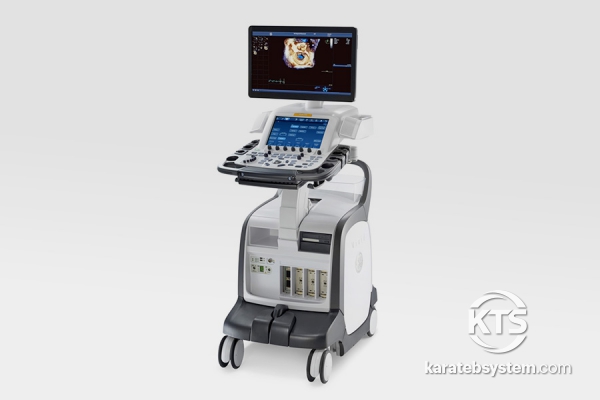

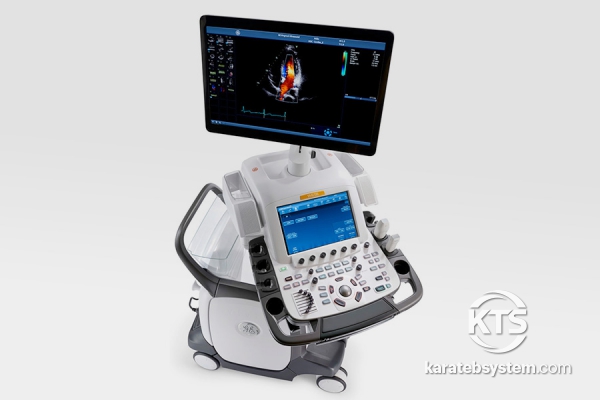

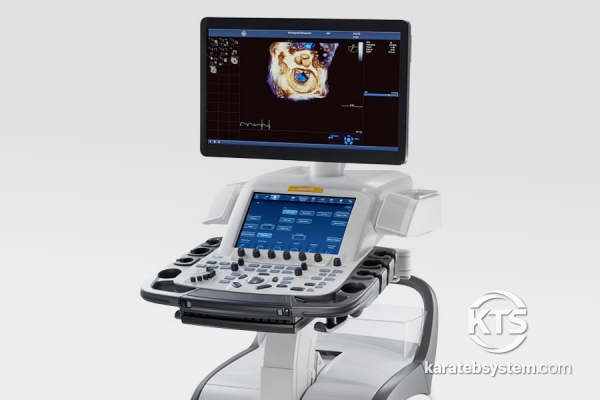

GE Vivid E90 Cardiovascular Ultrasound System

||||||

Technical Specification
Probes

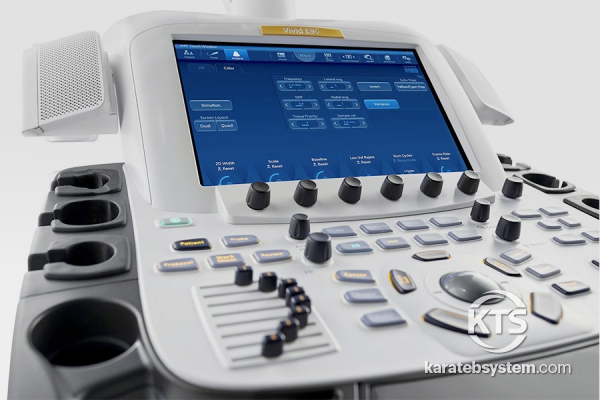

22" HD Wide OLED monitor, 12" Touch Screen, Weight: 126 kg, 278 lbs., 4 probe ports

Imaging Modes:

2D, M mode, M-color Flow Mode, Anatomical M-mode, Trapezoidal Mode, Color, Power Angio, Pulse Wave Doppler, Bi-directional Power (=HD FLOW), SCW Doppler, Tissue Doppler (Velocity) Imaging, Stress Echo, Strain and Strain Rate (Cardiac), B Flow, Panoramic Imaging (=Logiq view), Contrast Imaging - Cardiac

Application:

Abdominal, OB, Fetal Echo, Vascular, TCD (Transcranial), Small Parts (Breast, Thyroid, Testis…), MSK/Anesthesiology, Pediatrics, Urology (Renal, Prostate…), Echocardiography Adult, Interventional Cardiology, Echocardiography Pediatric, Echocardiography Neonate, Stress Echocardiography, Transesophageal Echo Adult, Transesophageal Echo Pediatric, Internal Medicine w/ Shared Service, Surgery, Contrast Imaging - Cardiac (High or Low MI)

11L-D

Bandwidth: 4.5 - 12 MHz
Applications: Vascular, Breast, Small Parts, Musculoskeletal, Thyroid, Scrotal, Rodent

12S-D

Bandwidth: 4 - 12 MHz
Applications: Pediatric, Neonatal, Cardiac, Coronary, Neonatal Head, Abdominal, Rodent

9T-RS

Bandwidth: 3 - 10 MHz
Applications: Pediatric

6Tc-RS

Bandwidth: 3 - 8 MHz
Applications: Cardiac, Coronary

8C

Bandwidth: 4 - 8 MHz
Applications: Abdominal, Vascular, Pediatric, Neonatal Head

6S-D

Bandwidth: 2.4 - 8.0 MHz
Applications: Pediatric, Cardiac, Coronary, Neonatal Head, Fetal Heart, Abdominal

C2-9-D

Bandwidth: 2.3 - 8.4 MHz
Applications: Abdominal, OB/GYN, Vascular, Urology, Fetal Heart

C1-6-D

Bandwidth: 1.5 - 6.0 MHz
Applications: Abdominal, Renal, OB/GYN, Urology (Pelvic), Fetal Heart

9L-D

Bandwidth: 2.4 - 10.0 MHz
Applications: Vascular (incl. Carotid, LEA, LEV, UEA, UEV), Musculoskeletal, Thyroid, & Contrast (Optional)

M5Sc-D

Bandwidth: 1.4 - 4.6 MHz
Applications: Cardiac, Pediatric, Abdominal, Fetal Heart, Cranial, Coronary, Stress (Exercise, Qstress and LVO stress), LV Contrast, Renal, Contrast Now MI
