- Technical Specification
- Probes

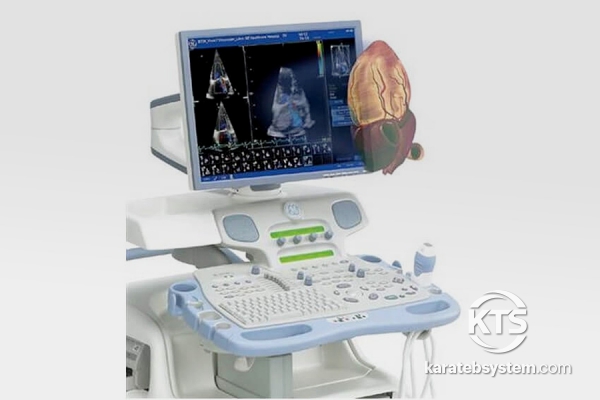

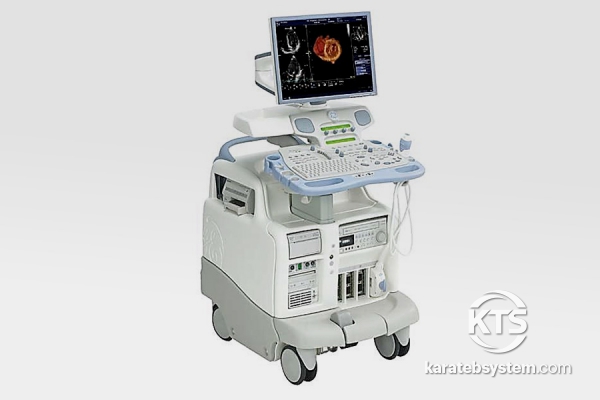

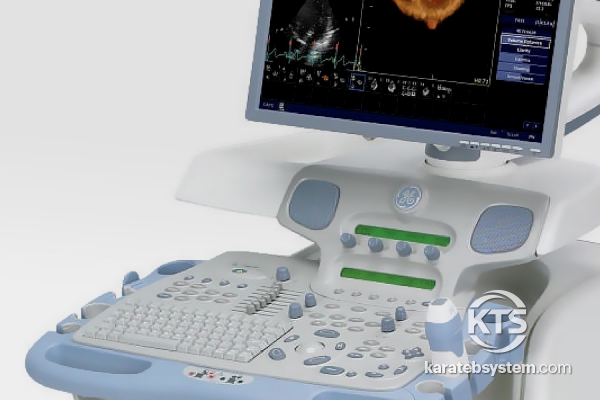

19” LCD monitor, Weight: 419lbs, 3 probe ports
Imaging Modes:
B-Mode, M-Mode, Color Doppler, Power Doppler, PW Doppler, CW Doppler, Volume 3D, B-Flow, Color M-Mode, 10.4″ color programmable LCD touch screen, 3 probe ports , Topographic & Directional maps, HPRF [High Pulse Repetition Frequency], Coded Excitation, [SRI] Speckle Reduction Imaging, Anatomical M-mode, TrueScan, ComfortScan , LOGIQView [Extended field of view], THI [Tissue harmonic imaging], ATO [Automatic Tissue Optimization], Virtual convex, General imaging IVF, Fetal cardiac, Urology, OB/GYN & Vascular reporting
Application:
Cardiology, Endocrinology, Family Practice, Gastroenterology, Internal Medicine, Nephrology, Neurology, Otorhinolaryngology, Pain Management, Surgery, Vascular
M3S
Bandwidth: 1.5 - 4 MHz
Applications: Cardiac
M4S
Bandwidth: 1.5 - 4.3 MHz Matrix Array
Applications: Cardiac, Abdominal
12L
Bandwidth: 5 - 13 MHz
Applications: Small Parts, Vascular, Neonatal, Pediatric
12L-RS
Bandwidth: 5 - 13 MHz
Applications: Peripheral Vascular, Small Parts, Musculoskeletal, Nerve Blocks, Thoracic
3.5C
Bandwidth: 2 - 5 MHz
Applications: Abdomen, OB/GYN, Vascular, Urology
3S-RS
Bandwidth: 1 - 3 MHz
Applications: Cardiac
4D3C-L
Bandwidth: 2 - 5 MHz
Applications: Abdominal, OB/GYN
6T
Bandwidth: 3 - 7 MHz
Applications: Transesophageal
6VT-D
Bandwidth: 3 - 8 MHz
Applications: Transesophageal
7L
Bandwidth: 2.5 - 7 MHz
Applications: Small Parts, Vascular, Pediatric
8L-RS
Bandwidth: 4 - 12 MHz
Applications: Peripheral Vascular, Small Parts
9L
Bandwidth: 3 - 8 MHz
Applications: Pediatric Vascular, Small Parts
C1-5-D
Bandwidth: 3 - 5 MHz
Applications: Abdominal, OB/GYN
M12L
Bandwidth: 5 - 13 MHz
Applications: Small Parts, Vascular, Pediatric, Neonatal
E8C
Bandwidth: 4 - 8 MHz
Applications: OB/GYN, Urology
IC5-9-D
Bandwidth: 4 - 10 MHz
Applications: Endocavity
ML6-15-D
Bandwidth: 5 - 15 MHz
Applications: Vascular, Breast, Small Parts, Musculoskeletal
P2D
Bandwidth: 2 MHz
Applications: Cardiology, Peripheral Vascular, Neurology
RAB4-8-D
Bandwidth: 4 - 8 MHz
Applications: Abdominal, OB/GYN
SP6-12
Bandwidth: 6 - 12 MHz
Applications: Small Parts, Peripheral Vascular, Pediatric, Orthopedic
