- Technical Specification
- Probes

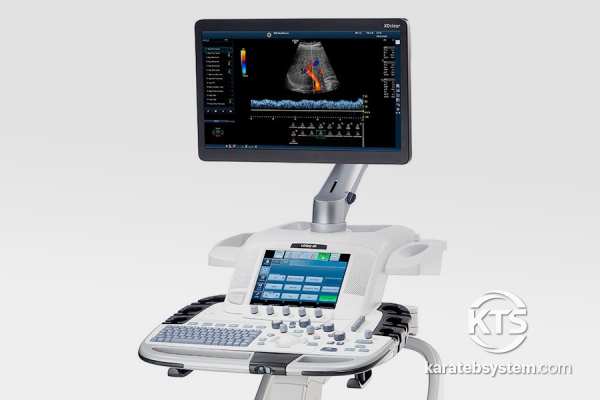

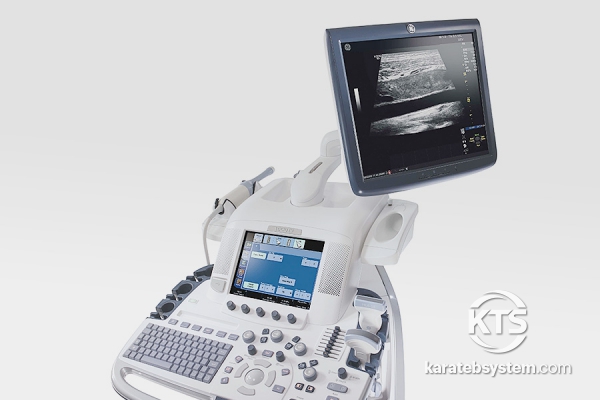

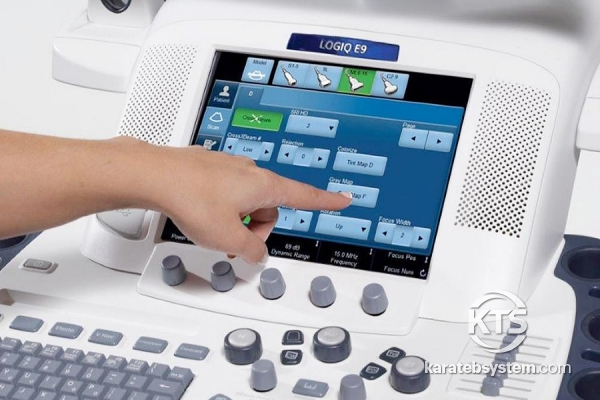

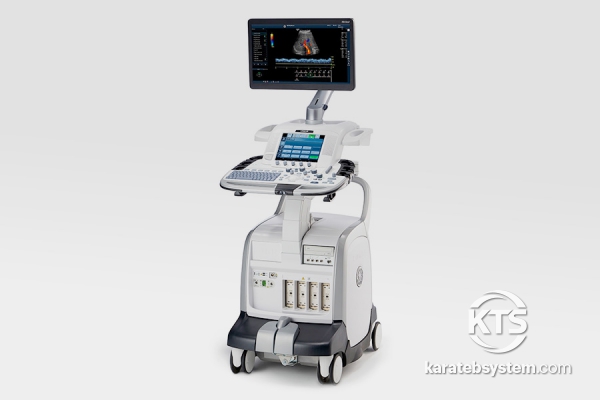

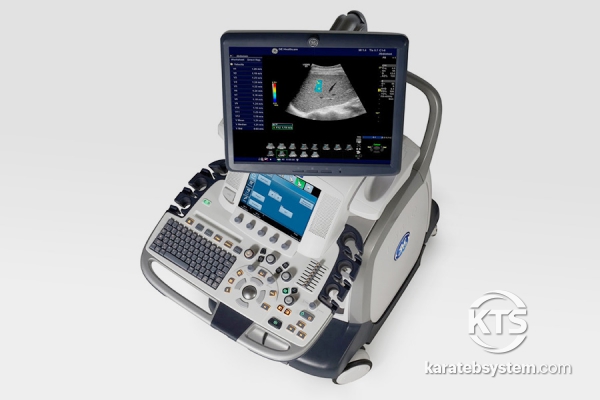

23" Wide LCD monitor, 10.4” touch screen, Weight: 297 lbs (135 kg), 4 probe ports
Imaging Modes:
2D, M mode, M-color Flow Mode, Anatomical M-mode, Trapezoidal Mode, Color, Power Angio, Pulse Wave Doppler, SCW Doppler, Tissue Doppler(Velocity) Imaging, Freehand 3D, Live 3/4D OB/GYN, STIC (Spatio-Temporal Image Correlation), Strain and Strain Rate (Cardiac), B Flow, Panoramic Imaging (=Logiq view), Contrast Imaging Cardiac, Contrast Imaging - General Imaging, Strain-based Elastography.
Applications:
Abdominal, Women's Health Care (GYN & Breast), OB, Vascular, TCD(Transcranial), Small Parts (Breast, Thyroid, Testis…), MSK/Anesthesiology, Pediatrics, Urology (Renal, Prostate…), Echocardiography Adult, Echocardiography Pediatric, Echocardiography Neonate, Stress Echocardiography, Internal Medicine w/ Shared Service, Contrast Imaging General Imaging (Low MI), Contrast Imaging Cardiac (High or Low MI), Elastography.
6S-D
Bandwidth: 2.4 - 8.0 MHz
Applications: Pediatric, Cardiac, Coronary, Neonatal Head, Fetal Heart & Abdominal
M5S-D
Bandwidth: 1.5 - 4.5 MHz
Applications: Cardiac, Pediatrics, Abdomen, Fetal Heart, Transcranial, Coronary, Stress, LVO Contrast
9L-D
Bandwidth: 2.4 - 10.0 MHz
Applications: Vascular (incl. Carotid, LEA, LEV, UEA, UEV), Musculoskeletal, Thyroid, & Contrast (optional)
ML6-15-D
Bandwidth: 4.0 - 15.0 MHz
Applications: Vascular, Breast, Small Parts, Musculoskeletal, Thyroid, Scrotal, Rodents
11L-D
Bandwidth: 4.5 - 12.0 MHz
Applications: Vascular (incl. Carotid, LEA, LEV, UEA, UEV), Breast, Small Parts, Musculoskeletal, Thyroid, Scrotal & Rodent
L8-18i-D
Bandwidth: 5.0 - 15.0 MHz
Applications: Cardiac, Rodent (incl. Mice, Rats), Vascular, Musculoskeletal & Small Parts
C1-5-D
Bandwidth: 1.0 - 5.0 MHz
Applications: Abdominal, Obstetrics, Radiology
C1-6-D
Bandwidth: 1.5 - 6.0 MHz
Applications: Abdominal, Renal, OB/GYN, Urology (Pelvic), Fetal Heart
C2-9-D
Bandwidth: 2.3 - 8.4 MHz
Applications: Abdominal, OB/GYN, Vascular, Urology, Fetal Heart
iC5-9-D
Bandwidth: 3.3 - 8.6 MHz
Applications: OB/GYN, Urology ( Pelvic), Fetal Heart
6Tc
Bandwidth: 3.0 - 8.0 MHz
Applications: Cardiac, Coronary
RIC5-9A-RS
Bandwidth: 2.7 - 9.3 MHz
Applications: Obstetrics, Gynecology, Urology
P2D Probe (Pencil)
Bandwidth: 2.0 MHz
Applications: Cardiac
